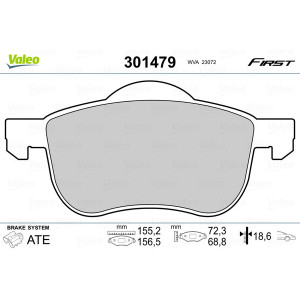

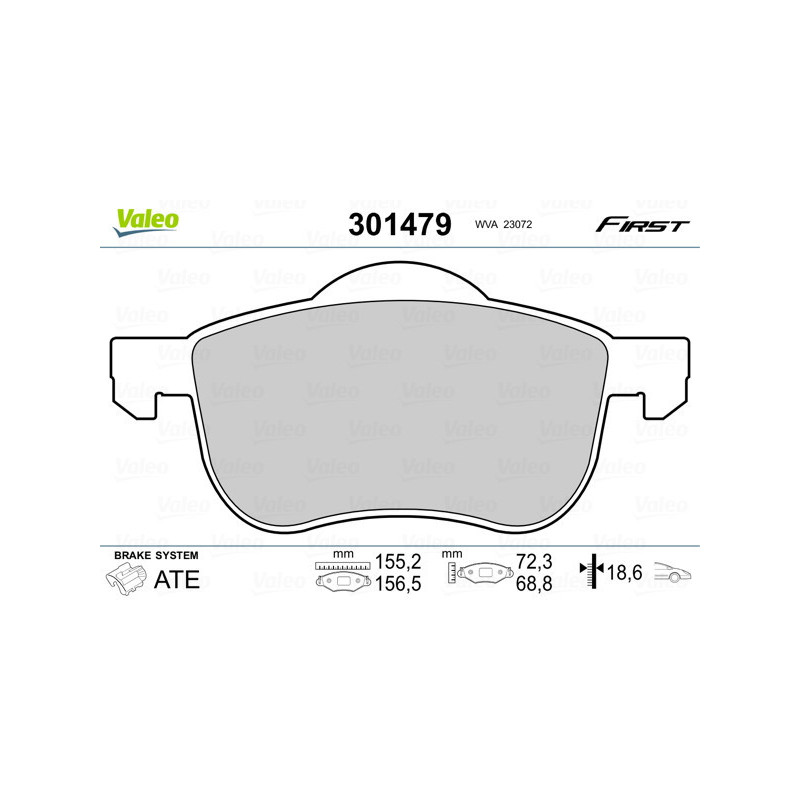

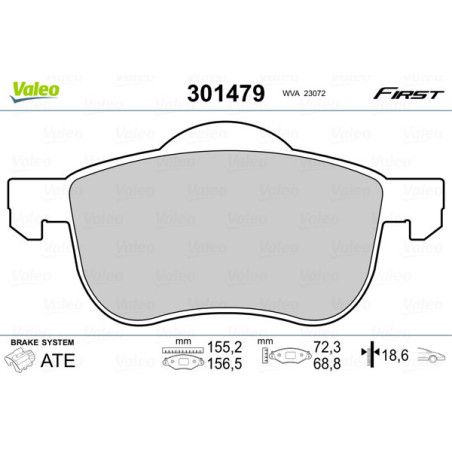

Descrizione
Marca: VALEO
Codice articolo del costruttore (MPN): 301479
Contenuto del pacco: Set d'assale (4 pastiglie freno)
Informazioni supplementari: FIRST
Lato montaggio: Assale anteriore
Contatto avvisatore usura: senza contatto segnalazione usura
Anno da: 12/1996
Altezza (mm): 72,3
Altezza 2 (mm): 69
Larghezza (mm): 155
Larghezza 2 (mm): 157
Spessore (mm): 18,6
Spessore 2 (mm): 18,6
Numero di WVA: 23072
Marchio controllo: ECE-R90
Peso (kg): 2,14
Informazioni supplementari: con lamierino anticigolío
Sistema frenante: TEVES
Unità quantitativa: Set d'assale
Condizione: Nuovo
Classificazione dei ricambi: pezzo di ricambio (OEM)
Garanzia: 12 mesi
Codice ricambio originale OE: VOLVO 2724011, 30648385, 30648387, 31262503, 31262506, 8623861, 8634921
Codice ricambio equivalente: A.B.S. 37097, ABAKUS/LORO/DEPO 231-01-063, ABE C1V015ABE, C1V015ABE-P, AISIN BPVO-1001, ASHIKA 50-00-0332, 50-00-0336, ATE 13.0460-7145.2, 13.0470-7145.2, Barum BA2253, BLUE PRINT ADF124223, BOSCH 0 986 424 540, 0 986 495 061, BRAXIS AA0077, BRECK 23073 00 703 00, BREMBO P 86 016, P 86 020, CHAMPION 573003CH, CIFAM 822-309-0, DAVID VASCO Q1388, Z1388, DELPHI LP1458, DENCKERMANN B110817, DJ PARTS BP1905, Dr!ve+ DP1010.10.0825, FEBEST 2701-S60F, FEBI BILSTEIN 16359, FERODO FDB1382, FSL1382, FOMAR Friction FO 673481, FTE 9010316, BL1716A1, HELLA 8DB 355 006-851, 8DB 355 008-851, HELLA PAGID 8DB 355 006-851, 8DB 355 008-851, ICER 181297, JAPKO 500332, 500336, JP GROUP 4963600510, 4963600519, 4963600610, JPN 10H9138-JPN, JURID 573003J, 573003JC, KAMOKA JQ1012764, KAWE 810046, KRAFT 6006430, LPR 05P704, MAGNETI MARELLI 363700201189, 363700201579, 363700486016, 363700486020, 363916060422, 363916061155, MAPCO 6509, MASTER-SPORT 13046071452N-SET-MS, MAXGEAR 19-1117, METELLI 22-0309-0, METZGER 1170013, MEYLE 025 230 7318, 025 230 7318/PD, MINTEX MDB1944, MDB2784, MOTAQUIP LVXL1326, MTR MT537, NK 224820, OPTIMAL 10348, BP-10348, ProfiPower 1B1074, QUARO QP0201, QP7321, QP7321C, QUINTON HAZELL BP1103, BP1547, RAICAM RA.0693.0, REMSA 0713.00, RIDEX 402B0053, ROADHOUSE 2713.00, SAMKO 5SP704, SASIC 6216137, SKF VKBP 80215, STARK SKBP-0010052, SWAG 55 91 6359, TEXTAR 2307303, 2307381, 2307401, TOMEX brakes TX 14-04, TRISCAN 8110 27003, TRW GDB1388, GDB1388DTE, VAICO V95-0147, VALEO 301479, 302699, 598479, ZEKKERT BS-2760, ZIMMERMANN 23073.190.1, 23073.990.1
La tabella di compatibilità è solo indicativa e non garantisce che questo ricambio sia adatto alla vostra auto. Le case automobilistiche utilizzano diverse varianti dello stesso pezzo per lo stesso modello, a seconda di molti fattori quali: l'anno di produzione, lo stabilimento in cui è stata assemblata l'auto, le attrezzature o i pacchetti aggiuntivi aggiunti durante l'ordinazione dell'auto, ecc. Le diverse varianti di solito non sono intercambiabili tra loro. Controllare il numero di ricambio originale (OE) utilizzato nella propria auto e confrontarlo con il numero di ricambio originale (OE) fornito sopra o contattarci per verificare la compatibilità.
PER LE SEGUENTI AUTO:
Modello | Motore / kw/CV | Anni di produzione | Restrizione
• VOLVO S60 I (384) 2.0 T | B 5204 T5 / 132KW/180CV | 07.2000 - 04.2010 | Anno da 08/2000, Anno fino a 03/2009
• VOLVO S60 I (384) 2.4 | B 5244 S2 / 103KW/140CV | 07.2000 - 04.2010 | Anno da 08/2000, Anno fino a 03/2009
• VOLVO S60 I (384) 2.4 | B 5244 S / 125KW/170CV | 11.2000 - 04.2010 | Anno fino a 03/2009
• VOLVO S60 I (384) 2.4 | B 5244 T4 / 132KW/180CV | 01.2005 - 10.2006 |
• VOLVO S60 I (384) 2.4 Bifuel (CNG) | B 5244 SG / 103KW/140CV | 07.2001 - 04.2010 | Anno fino a 03/2009
• VOLVO S60 I (384) 2.4 Bifuel (LPG) | B 5244 SG2 / 103KW/140CV | 07.2001 - 04.2010 | Anno fino a 03/2009
• VOLVO S60 I (384) 2.4 CDI | D 5244 T3 / 85KW/116CV | 10.2003 - 12.2005 | Anno fino a 04/2005
• VOLVO S60 I (384) 2.4 D | D 5244 T6 / 90KW/122CV | 05.2005 - 12.2006 | Anno fino a 05/2006
• VOLVO S60 I (384) 2.4 D | D 5244 T7 / 93KW/126CV | 03.2005 - 04.2010 | Anno da 04/2005, Anno fino a 03/2009
• VOLVO S60 I (384) 2.4 D | D 5244 T2 / 96KW/130CV | 05.2001 - 04.2010 | Anno da 06/2001, Anno fino a 03/2009
• VOLVO S60 I (384) 2.4 T | B 5244 T3 / 147KW/200CV | 07.2000 - 04.2010 | Anno da 08/2000, Anno fino a 01/2003
• VOLVO S60 I (384) 2.4 T AWD | B 5244 T3 / 147KW/200CV | 06.2001 - 04.2010 | Anno fino a 01/2003
• VOLVO S60 I (384) 2.5 T | B 5254 T2 / 154KW/210CV | 01.2003 - 04.2010 | Anno da 02/2004, Anno fino a 03/2009
• VOLVO S60 I (384) 2.5 T AWD | B 5254 T2 / 154KW/210CV | 07.2002 - 04.2010 | Anno da 02/2004, Anno fino a 03/2009
• VOLVO S60 I (384) D5 | D 5244 T5 / 120KW/163CV | 01.2001 - 04.2010 | Anno da 06/2001, Anno fino a 03/2005
• VOLVO S60 I (384) D5 | D 5244 T4 / 136KW/185CV | 03.2005 - 04.2010 | Anno da 06/2005, Anno fino a 03/2009
• VOLVO S60 I (384) T5 | B 5234 T3 / 184KW/250CV | 07.2000 - 04.2010 | Anno da 08/2000, Anno fino a 12/2004
• VOLVO S60 I (384) T5 | B 5244 T5 / 191KW/260CV | 04.2004 - 04.2010 | Anno fino a 03/2009
• VOLVO S60 I (384) T5 | B 5234 T7 / 195KW/265CV | 07.2000 - 09.2002 |
• VOLVO S70 (874) 2.0 | B 5204 T4 / 120KW/163CV | 01.1997 - 11.2000 | Anno da 07/1998
• VOLVO S80 I (184) 2.0 | B 5204 T4 / 120KW/163CV | 06.1998 - 07.2006 | Anno fino a 12/2000
• VOLVO S80 I (184) 2.0 T | B 5204 T5 / 132KW/180CV | 12.1999 - 07.2006 | Anno fino a 02/2006
• VOLVO S80 I (184) 2.0 T | B 5204 T3 / 166KW/226CV | 06.1998 - 07.2006 | Anno fino a 12/2000
• VOLVO S80 I (184) 2.3 R | B 5234 T7 / 195KW/265CV | 04.2000 - 08.2005 |
• VOLVO S80 I (184) 2.4 | B 5244 S2 / 103KW/140CV | 01.1999 - 07.2006 | Anno fino a 02/2006
• VOLVO S80 I (184) 2.4 | B 5244 S / 125KW/170CV | 01.1999 - 07.2006 | Anno fino a 02/2006
• VOLVO S80 I (184) 2.4 Bifuel (CNG) | B 5244 SG2 / 103KW/140CV | 09.2001 - 07.2006 | Anno fino a 05/2005
• VOLVO S80 I (184) 2.4 Bifuel (LPG) | B 5244 SG / 103KW/140CV | 09.2001 - 07.2006 | Anno fino a 05/2005
• VOLVO S80 I (184) 2.4 D | D 5244 T2 / 96KW/131CV | 10.2001 - 07.2006 | Anno fino a 02/2006
• VOLVO S80 I (184) 2.4 T | B 5244 T3 / 147KW/200CV | 06.2000 - 07.2006 | Anno da 08/2000, Anno fino a 12/2003
• VOLVO S80 I (184) 2.5 T | B 5254 T2 / 154KW/210CV | 03.2003 - 07.2006 | Anno da 07/2003, Anno fino a 02/2006
• VOLVO S80 I (184) 2.5 T AWD | B 5254 T2 / 154KW/210CV | 07.2003 - 07.2006 | Anno fino a 02/2006
• VOLVO S80 I (184) 2.5 TDI | D 5252 T / 103KW/140CV | 01.1999 - 07.2006 | Anno fino a 12/2001
• VOLVO S80 I (184) 2.9 | B 6294 S / 147KW/200CV | 03.1999 - 07.2006 | Anno fino a 05/2001
• VOLVO S80 I (184) 2.9 | B 6304 S3 / 150KW/204CV | 05.1998 - 07.2006 | Anno da 06/1998, Anno fino a 12/1999
• VOLVO S80 I (184) 3.0 | B 6294 S2 / 144KW/196CV | 06.2001 - 07.2006 | Anno fino a 05/2005
• VOLVO S80 I (184) D5 | D 5244 T / 120KW/163CV | 08.2001 - 07.2006 | Anno fino a 02/2006
• VOLVO S80 I (184) T5 AWD | B 5244 T3 / 147KW/200CV | 04.2000 - 09.2003 |
• VOLVO S80 I (184) T6 | B 6294 T / 200KW/272CV | 06.2001 - 07.2006 | Anno fino a 02/2006
• VOLVO S80 I (184) T6 | B 6284 T / 200KW/272CV | 05.1998 - 12.2001 | Anno da 06/1998, Anno fino a 12/1999
• VOLVO V70 I (875, 876) 2.3 Turbo | B 5234 T4 / 184KW/250CV | 12.1995 - 03.2000 | Anno da 05/1997, Anno fino a 06/1998
• VOLVO V70 I (875, 876) 2.4 | B 5244 S2 / 103KW/140CV | 03.1999 - 12.2000 | Anno da 05/1999, Anno fino a 12/1999
• VOLVO V70 I (875, 876) 2.4 | B 5254 S / 121KW/165CV | 06.1998 - 12.1999 |
• VOLVO V70 I (875, 876) 2.4 | B 5244 S / 125KW/170CV | 12.1995 - 05.2000 | Anno da 12/1996, Anno fino a 12/1999
• VOLVO V70 I (875, 876) 2.4 Bifuel | B 5244 SG / 103KW/140CV | 08.1999 - 12.2000 | Anno fino a 12/1999
• VOLVO V70 I (875, 876) 2.4 Turbo AWD | B 5244 T2 / 195KW/265CV | 03.1999 - 12.2000 | Anno fino a 03/2000
• VOLVO V70 I (875, 876) 2.5 TDI | D 5252 T / 103KW/140CV | 12.1995 - 12.2000 | Anno da 05/1997, Anno fino a 06/1998
• VOLVO V70 I (875, 876) 2.5 TDi AWD | D 5252 T / 103KW/140CV | 11.1996 - 02.2000 |
• VOLVO V70 II (285) 2.0 T | B 5204 T5 / 132KW/180CV | 11.1999 - 08.2007 | Anno da 01/2000, Anno fino a 04/2007
• VOLVO V70 II (285) 2.3 | B 5234 T7 / 195KW/265CV | 10.2000 - 09.2004 |
• VOLVO V70 II (285) 2.4 | B 5244 S2 / 103KW/140CV | 03.2000 - 08.2007 | Anno da 01/2001, Anno fino a 04/2007
• VOLVO V70 II (285) 2.4 | B 5244 S / 125KW/170CV | 03.2000 - 08.2007 | Anno da 01/2001, Anno fino a 08/2004
• VOLVO V70 II (285) 2.4 Bifuel (CNG) | B 5244 SG / 103KW/140CV | 09.2001 - 08.2007 | Anno fino a 04/2007
• VOLVO V70 II (285) 2.4 Bifuel (LPG) | B 5244 SG2 / 103KW/140CV | 09.2001 - 08.2007 | Anno fino a 12/2005
• VOLVO V70 II (285) 2.4 CDI | D 5244 T6 / 90KW/122CV | 07.2005 - 12.2008 |
• VOLVO V70 II (285) 2.4 D | D 5244 T7 / 93KW/126CV | 04.2005 - 12.2008 | Anno da 11/2005, Anno fino a 03/2007
• VOLVO V70 II (285) 2.4 D | D 5244 T2 / 96KW/131CV | 07.2001 - 08.2007 |
• VOLVO V70 II (285) 2.4 T | B 5244 T3 / 147KW/200CV | 11.1999 - 08.2003 | Anno da 01/2000
• VOLVO V70 II (285) 2.4 T AWD | B 5244 T3 / 147KW/200CV | 09.2001 - 08.2002 |
• VOLVO V70 II (285) 2.5 AWD | B 5254 T2 / 155KW/211CV | 09.2002 - 12.2004 |
• VOLVO V70 II (285) 2.5 T | B 5254 T2 / 154KW/209CV | 07.2001 - 08.2007 | Anno da 01/2004, Anno fino a 04/2007
• VOLVO V70 II (285) 2.5 T AWD | B 5254 T2 / 154KW/209CV | 07.2002 - 08.2007 | Anno fino a 04/2007
• VOLVO V70 II (285) 2.5 TDI | D 5252 T / 103KW/140CV | 11.1999 - 08.2007 | Anno da 01/2000, Anno fino a 12/2001
• VOLVO V70 II (285) D5 | D 5244 T5 / 120KW/163CV | 01.2001 - 12.2008 | Anno fino a 08/2007
• VOLVO V70 II (285) D5 | D 5244 T4 / 136KW/185CV | 04.2005 - 12.2008 | Anno fino a 04/2007
• VOLVO V70 II (285) D5 AWD | D 5244 T5 / 120KW/163CV | 07.2002 - 08.2007 | Anno fino a 04/2007
• VOLVO V70 II (285) D5 AWD | D 5244 T4 / 136KW/185CV | 05.2005 - 08.2007 | Anno fino a 04/2007
• VOLVO V70 II (285) T5 | B 5234 T3 / 184KW/250CV | 11.1999 - 12.2004 | Anno da 01/2000
• VOLVO V70 II (285) T5 | B 5244 T5 / 191KW/260CV | 04.2004 - 08.2007 | Anno fino a 04/2007
• VOLVO XC70 Cross Country (295) 2.4 T XC AWD | B 5244 T3 / 147KW/200CV | 03.2000 - 09.2002 | Anno da 09/2000
• VOLVO XC70 Cross Country (295) 2.5 T XC AWD | B 5254 T2 / 154KW/209CV | 09.2002 - 08.2007 | Anno fino a 03/2007
• VOLVO XC70 Cross Country (295) D5 AWD | D 5244 T4 / 136KW/185CV | 12.2005 - 08.2007 | Anno fino a 03/2007
• VOLVO XC70 Cross Country (295) D5 XC AWD | D 5244 T / 120KW/163CV | 09.2002 - 08.2007 | Anno fino a 08/2005
