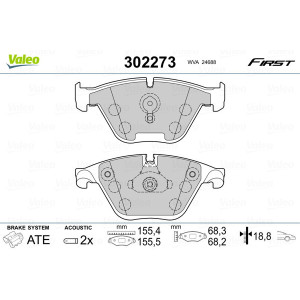

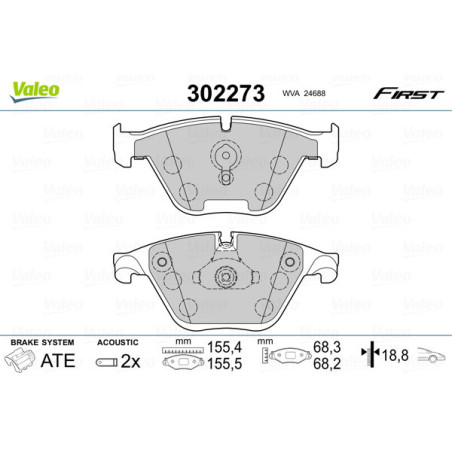

Beschreibung
Hersteller: VALEO
Herstellernummer (MPN): 302273
Paket Inhalt: Achsenset (4 Bremsbeläge)
Einbauposition: Vorderachse
Verschleißwarnkontakt: mit Verschleißwarnkontakt
Produktionsjahr bis: 06/2013
Anzahl der Verschleißanzeigen [pro Achse]: 2
Höhe (mm): 68,3
Höhe 2 (mm): 68,2
Breite (mm): 155
Breite 2 (mm): 156
Dicke (mm): 18,8
Dicke/Stärke 2 (mm): 19,9
WVA-Nummer: 24688
Prüfzeichen: ECE-R90
Gewicht (kg): 1,915
Zusätzliche Information: mit Anti-Quietsch-Blech
Bremssystem: TEVES
Mengeneinheit: Achsenset
Zustand: neu
Klassifizierung der Teile: ersatzteil (OEM)
Garantie: 12 Monate
OE Referenznummer: BMW 34112339270, 34116775314, 34116850885, 34116850886, 34116871557, BMW (BRILLIANCE) 34116850885, 34116871557
Vergleichsnummer: A.B.S. 37346, 37829, 37960, ABAKUS/LORO/DEPO 231-01-182, ABE C1B014ABE, C1B014ABE-P, C1B029ABE, C1B029ABE-P, AISIN BPBM-1011, ASHIKA 50-00-0126, ATE 13.0460-7275.2, 13.0460-7296.2, 13.0470-7275.2, 13.0470-7296.2, BLUE PRINT ADB114207, ADB114208, ADB114210, BOSCH 0 986 494 549, 0 986 494 898, BRECK 23312 00 551 20, 23312 00 701 20, 24688 00 551 10, 24688 00 701 10, BREMBO P 06 054, P 06 054X, P 06 074, BSG BSG 15-200-015, BSG 15-200-036, BSG 15-202-010, BSG 15-202-023, CHAMPION 571224CH, 571990CH, 573181CH, 573305CH, CIFAM 822-558-9, 822-918-0, DAVID VASCO Z1498, DELPHI LP2245, DENCKERMANN B110999, B111314, DJ PARTS BP2249, DON PCP1022, Dr!ve+ DP1010.10.0649, DP1010.10.0767, EBC Brakes DP42103R, FEBEST 1901-E90F, FEBI BILSTEIN 16433, 16728, 16865, 16899, FERODO FDB113, FDB1628, FDB4191, FDB4382, FOMAR Friction FO 922681, FTE BL2084A2, BL2086B2, BL2715A1, HELLA 8DB 355 015-261, 8DB 355 015-391, HELLA PAGID 8DB 355 015-261, 8DB 355 015-391, ICER 181998, JAPANPARTS PA-0126AF, JAPKO 500126, JP GROUP 1463601410, JPN 10H9177-JPN, JURID 571990J, 571990JC, 573181J, 573181JC, 573189JC, 573305J, 573305JC, KAMOKA JQ101092, JQ101292, KRAFT 6002579, LPR 05P1619, MAGNETI MARELLI 363700201962, 363700201989, 363700406054, 363700406074, 363916060151, 363916060582, 363916061157, MAPCO 6112, 6112HPS, 6720, 6720HPS, 6814, MASTER-SPORT 13046072752N-SET-MS, 13046072962N-SET-MS, 203001730, 203002180, MAXGEAR 19-0639, 19-2998, METELLI 22-0918-0, METZGER 1170538, MEYLE 025 233 4720, 025 233 4720/PD, 025 246 8820, 025 246 8820/PD, MINTEX MDB3092, MDB3106, MOTAQUIP LVXL1168, LVXL1716, MTR 12160829, NK 221539, 221547, 221558, OPTIMAL 12601, 12712, BP-12601, BP-12712, BP-85700, ProfiPower 1B1113, QUARO QP2153, QP2153C, QP3570, QP3570C, QUINTON HAZELL BP1398, BP1753, BP1755, RAICAM RA.0789.0, RA.0789.2, REMSA 0857.00, 0857.20, 1496.00, RIDEX 402B0061, 402B0553, RIDEX PLUS 402B0061P, ROADHOUSE 21496.00, 2857.00, 2857.20, SAMKO 5SP1619, SKF VKBP 80308, VKBP 80444, STARK SKBP-0010060, SKBP-0011117, STOPTECH 308.09180, SWAG 20 91 6433, 20 91 6728, 20 91 6865, 20 91 6899, TEXTAR 2331211, 2331282, 2468801, 2468881, TOMEX brakes TX 13-25, TX 17-35, TOPRAN 502 514, TRISCAN 8110 11041, TRUCKTEC AUTOMOTIVE 08.34.174, TRUSTING 574.9, 936.0, TRW GDB1498, GDB1498DTE, GDB1854, VAICO V20-1464, V20-8121, V20-8121-1, VALEO 302273, 601320, 601357, 601382, ZEKKERT BS-1163, BS-2946, ZIMMERMANN 23312.200.1, 23312.200.9, 23312.900.1, 24688.200.1, 24697.190.1
Die Kompatibilitätstabelle dient nur zur Orientierung und garantiert nicht, dass dieses Teil für Ihr Fahrzeug passt. Autohersteller verwenden verschiedene Varianten des gleichen Teils für das gleiche Modell, abhängig von vielen Faktoren wie: Produktionsjahr, die Fabrik, in der das Auto zusammengebaut wurde, zusätzliche Ausrüstung oder Paket bei der Bestellung des Autos hinzugefügt, etc. Die verschiedenen Varianten sind in der Regel nicht untereinander austauschbar. Überprüfen Sie die Originalteilnummer (OE), die in Ihrem Fahrzeug verwendet wird, und vergleichen Sie sie mit der oben angegebenen OE-Referenznummer oder kontaktieren Sie uns für eine Kompatibilitätsprüfung.
FÜR FOLGENDE AUTOS:
Modell | Motor / kw/PS | Jahre der Produktion | Einschränkung
• BMW 5 GT (F07) 530 d | N57 D30 A / 180KW/245PS | 08.2009 - 06.2012 | Produktionsjahr ab 10/2009
• BMW 5 GT (F07) 535 d xDrive | N57 D30 B / 220KW/299PS | 03.2010 - 06.2012 | Produktionsjahr ab 09/2010
• BMW 5 Limousine (E60) 525 d | M57 D25 (256D2) / 120KW/163PS | 12.2004 - 03.2010 | Produktionsjahr bis 12/2006
• BMW 5 Limousine (E60) 525 d | M57 D25 (256D2) / 130KW/177PS | 06.2004 - 03.2010 | Produktionsjahr bis 12/2006
• BMW 5 Limousine (E60) 530 d | M57 D30 (306D2) / 155KW/211PS | 09.2002 - 12.2009 | Produktionsjahr ab 05/2003, Produktionsjahr bis 09/2005
• BMW 5 Limousine (F10) 523 i | N52 B25 A / 150KW/204PS | 01.2010 - 08.2011 |
• BMW 5 Limousine (F10) 525 d | N57 D30 A / 150KW/204PS | 03.2010 - 08.2011 |
• BMW 5 Limousine (F10) 525 d | N47 D20 D / 155KW/211PS | 09.2011 - 10.2016 | Produktionsjahr bis 06/2013
• BMW 5 Limousine (F10) 525 d | N47 D20 D / 160KW/218PS | 09.2011 - 10.2016 |
• BMW 5 Limousine (F10) 525 d xDrive | N47 D20 D / 155KW/211PS | 09.2011 - 10.2016 | Produktionsjahr bis 06/2013
• BMW 5 Limousine (F10) 525 d xDrive | N47 D20 D / 160KW/218PS | 09.2011 - 10.2016 |
• BMW 5 Limousine (F10) 528 i | N20 B20 A / 180KW/245PS | 09.2011 - 10.2016 |
• BMW 5 Limousine (F10) 528 i | N53 B30 A / 190KW/258PS | 03.2010 - 08.2011 |
• BMW 5 Limousine (F10) 528 i xDrive | N20 B20 A / 180KW/245PS | 09.2011 - 10.2016 |
• BMW 5 Limousine (F10) 530 d | N57 D30 A / 180KW/245PS | 01.2010 - 08.2011 |
• BMW 5 Limousine (F10) 530 d | N57 D30 A / 190KW/258PS | 09.2011 - 10.2016 |
• BMW 5 Limousine (F10) 530 d | N57 D30 A / 210KW/286PS | 09.2010 - 10.2016 | Produktionsjahr ab 07/2014
• BMW 5 Limousine (F10) 530 d xDrive | N57 D30 A / 190KW/258PS | 03.2011 - 10.2016 |
• BMW 5 Limousine (F10) 530 d xDrive | N57 D30 A / 210KW/286PS | 03.2011 - 10.2016 | Produktionsjahr ab 07/2014, Produktionsjahr bis 09/2015
• BMW 5 Limousine (F10) 530 i | N52 B30 BF / 190KW/258PS | 03.2010 - 06.2013 | Produktionsjahr ab 05/2011
• BMW 5 Limousine (F10) 530 i | N53 B30 A / 200KW/272PS | 05.2011 - 06.2013 | Produktionsjahr ab 09/2011
• BMW 5 Limousine (F10) 535 i | N55 B30 A / 225KW/306PS | 01.2010 - 10.2016 | Produktionsjahr ab 10/2011, Produktionsjahr bis 06/2013
• BMW 5 Limousine (F10) 535 i | N55 B30 A / 240KW/326PS | 07.2013 - 10.2016 |
• BMW 5 Limousine (F10) 535 i xDrive | N55 B30 A / 225KW/306PS | 03.2011 - 10.2016 |
• BMW 5 Limousine (F10) 535 i xDrive | N55 B30 A / 240KW/326PS | 07.2013 - 10.2016 | Produktionsjahr ab 05/2014
• BMW 5 Limousine (F10) ActiveHybrid | N55 B30 A / 250KW/340PS | 12.2011 - 10.2016 |
• BMW 5 Touring (E61) 525 i | N52 B25 A / 155KW/211PS | 03.2005 - 05.2010 |
• BMW 5 Touring (E61) 530 d | M57 D30 (306D2) / 155KW/211PS | 03.2004 - 05.2010 | Produktionsjahr ab 09/2005, Produktionsjahr bis 12/2006
• BMW 5 Touring (F11) 518 d | B47 D20 A / 100KW/136PS | 07.2013 - 02.2017 | Produktionsjahr ab 07/2014
• BMW 5 Touring (F11) 518 d | N47 D20 C / 105KW/143PS | 07.2013 - 06.2014 |
• BMW 5 Touring (F11) 520 d | N47 D20 C / 100KW/136PS | 06.2010 - 06.2014 |
• BMW 5 Touring (F11) 520 d | B47 D20 A / 120KW/163PS | 06.2010 - 02.2017 | Produktionsjahr ab 07/2014
• BMW 5 Touring (F11) 520 d | N47 D20 C / 135KW/184PS | 06.2010 - 06.2014 | Produktionsjahr ab 01/2013
• BMW 5 Touring (F11) 520 d | N47 D20 C / 147KW/200PS | 06.2010 - 06.2014 |
• BMW 5 Touring (F11) 520 d xDrive | N47 D20 C / 100KW/136PS | 07.2013 - 06.2014 |
• BMW 5 Touring (F11) 520 d xDrive | N47 D20 C / 135KW/184PS | 07.2013 - 06.2014 |
• BMW 5 Touring (F11) 520 d xDrive | N47 D20 C / 147KW/200PS | 07.2013 - 06.2014 |
• BMW 5 Touring (F11) 525 d | N57 D30 A / 150KW/204PS | 09.2010 - 08.2011 |
• BMW 5 Touring (F11) 525 d | N47 D20 D / 155KW/211PS | 09.2011 - 02.2017 | Produktionsjahr ab 10/2012, Produktionsjahr bis 07/2014
• BMW 5 Touring (F11) 525 d | N47 D20 D / 160KW/218PS | 09.2011 - 02.2017 |
• BMW 5 Touring (F11) 525 d xDrive | N47 D20 D / 155KW/211PS | 07.2013 - 02.2017 | Produktionsjahr bis 07/2014
• BMW 5 Touring (F11) 525 d xDrive | N47 D20 D / 160KW/218PS | 07.2013 - 02.2017 |
• BMW 5 Touring (F11) 528 i | N20 B20 A / 180KW/245PS | 09.2011 - 02.2017 |
• BMW 5 Touring (F11) 528 i | N53 B30 A / 190KW/258PS | 11.2009 - 08.2011 | Produktionsjahr ab 07/2010
• BMW 5 Touring (F11) 528 i xDrive | N20 B20 A / 180KW/245PS | 09.2011 - 02.2017 |
• BMW 5 Touring (F11) 530 d | N57 D30 A / 180KW/245PS | 06.2010 - 08.2011 | Produktionsjahr ab 07/2010
• BMW 5 Touring (F11) 530 d | N57 D30 A / 190KW/258PS | 09.2011 - 02.2017 |
• BMW 5 Touring (F11) 530 d | N57 D30 A / 210KW/286PS | 09.2011 - 02.2017 | Produktionsjahr ab 01/2013, Produktionsjahr bis 07/2014
• BMW 5 Touring (F11) 530 d xDrive | N57 D30 A / 190KW/258PS | 03.2011 - 02.2017 |
• BMW 5 Touring (F11) 530 d xDrive | N57 D30 A / 210KW/286PS | 03.2011 - 02.2017 | Produktionsjahr ab 09/2015
• BMW 5 Touring (F11) 530 i | N53 B30 A / 200KW/272PS | 07.2011 - 06.2013 |
• BMW 5 Touring (F11) 535 i | N55 B30 A / 225KW/306PS | 06.2010 - 02.2017 | Produktionsjahr ab 06/2013
• BMW 5 Touring (F11) 535 i | N55 B30 A / 240KW/326PS | 07.2013 - 02.2017 | Produktionsjahr ab 05/2014
• BMW 5 Touring (F11) 535 i xDrive | N55 B30 A / 225KW/306PS | 09.2011 - 02.2017 | Produktionsjahr ab 02/2013
• BMW 5 Touring (F11) 535 i xDrive | N55 B30 A / 240KW/326PS | 07.2013 - 02.2017 | Produktionsjahr ab 05/2014
• BMW 6 Cabrio (F12) 640 i | N55 B30 A / 235KW/320PS | 09.2011 - 06.2018 | Produktionsjahr bis 04/2015
• BMW 6 Cabrio (F12) 640 i xDrive | N55 B30 A / 235KW/320PS | 03.2013 - 06.2018 | Produktionsjahr ab 03/2015
• BMW 6 Coupe (F13) 640 i | N55 B30 A / 235KW/320PS | 07.2011 - 10.2017 | Produktionsjahr ab 03/2015
• BMW 6 Coupe (F13) 640 i xDrive | N55 B30 A / 235KW/320PS | 03.2013 - 10.2017 | Produktionsjahr ab 03/2015
• BMW 6 Gran Coupe (F06) 640 i | N55 B30 A / 235KW/320PS | 03.2012 - 10.2018 | Produktionsjahr bis 04/2015
• BMW 6 Gran Coupe (F06) 640 i xDrive | N55 B30 A / 235KW/320PS | 03.2013 - 10.2018 | Produktionsjahr bis 04/2015
• BMW 7 (G11, G12) M 760 i, Li xDrive | N74 B66 B / 448KW/610PS | 12.2016 - 02.2019 | Produktionsjahr bis 02/2019
