Description

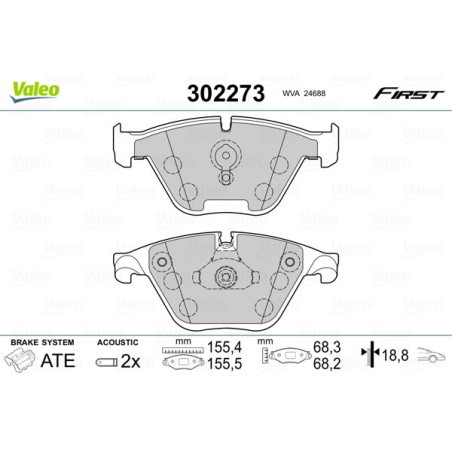

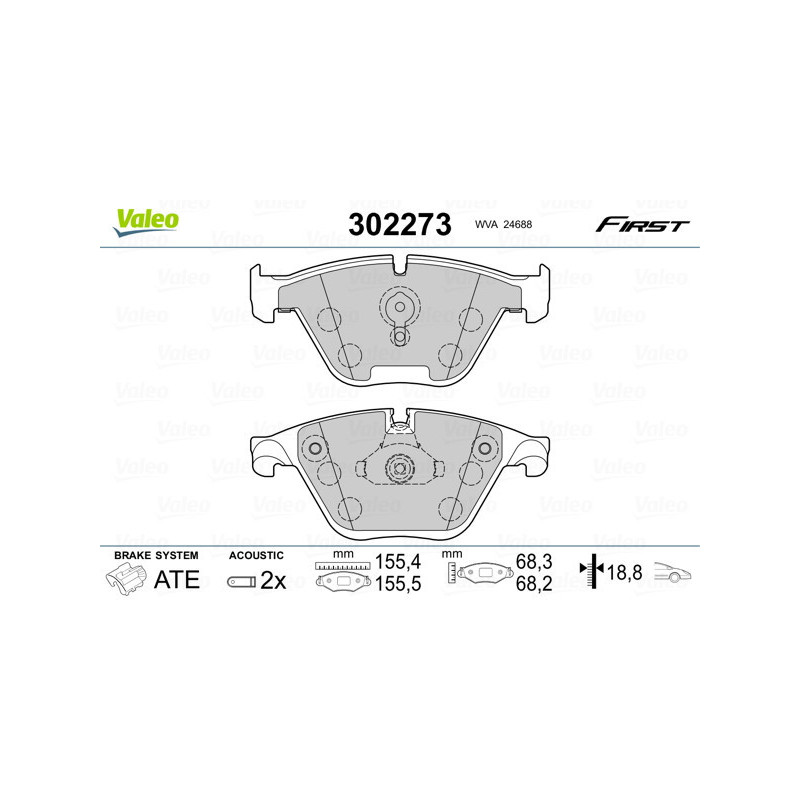

Marque: VALEO
Numéro de pièce fabricant (MPN): 302273
Contenu du coffret: Set d'essieu (4 plaquettes de frein)
Côté d'assemblage: Essieu avant
Indicateur d'usure: contact de signal d'usure inclus
Année jusqu'à: 06/2013
Nombre de témoins d'usure [par essieu]: 2
Hauteur (mm): 68,3
Hauteur 2 (mm): 68,2
Largeur (mm): 155
Largeur 2 (mm): 156
Épaisseur (mm): 18,8
Épaisseur 2 (mm): 19,9
numéro WVA: 24688
Marque de conformité: ECE-R90
Poids (kg): 1,915
Information additionnelle: avec tôle anti-bruit
Système de freinage: TEVES
Unité quantitative: Set d'essieu
L'état: Neuf
Classification des pièces: pièce de rechange (OEM)
Garantie: 12 mois
Numéro de référence OE: BMW 34112339270, 34116775314, 34116850885, 34116850886, 34116871557, BMW (BRILLIANCE) 34116850885, 34116871557
Références équivalentes: A.B.S. 37346, 37829, 37960, ABAKUS/LORO/DEPO 231-01-182, ABE C1B014ABE, C1B014ABE-P, C1B029ABE, C1B029ABE-P, AISIN BPBM-1011, ASHIKA 50-00-0126, ATE 13.0460-7275.2, 13.0460-7296.2, 13.0470-7275.2, 13.0470-7296.2, BLUE PRINT ADB114207, ADB114208, ADB114210, BOSCH 0 986 494 549, 0 986 494 898, BRECK 23312 00 551 20, 23312 00 701 20, 24688 00 551 10, 24688 00 701 10, BREMBO P 06 054, P 06 054X, P 06 074, BSG BSG 15-200-015, BSG 15-200-036, BSG 15-202-010, BSG 15-202-023, CHAMPION 571224CH, 571990CH, 573181CH, 573305CH, CIFAM 822-558-9, 822-918-0, DAVID VASCO Z1498, DELPHI LP2245, DENCKERMANN B110999, B111314, DJ PARTS BP2249, DON PCP1022, Dr!ve+ DP1010.10.0649, DP1010.10.0767, EBC Brakes DP42103R, FEBEST 1901-E90F, FEBI BILSTEIN 16433, 16728, 16865, 16899, FERODO FDB113, FDB1628, FDB4191, FDB4382, FOMAR Friction FO 922681, FTE BL2084A2, BL2086B2, BL2715A1, HELLA 8DB 355 015-261, 8DB 355 015-391, HELLA PAGID 8DB 355 015-261, 8DB 355 015-391, ICER 181998, JAPANPARTS PA-0126AF, JAPKO 500126, JP GROUP 1463601410, JPN 10H9177-JPN, JURID 571990J, 571990JC, 573181J, 573181JC, 573189JC, 573305J, 573305JC, KAMOKA JQ101092, JQ101292, KRAFT 6002579, LPR 05P1619, MAGNETI MARELLI 363700201962, 363700201989, 363700406054, 363700406074, 363916060151, 363916060582, 363916061157, MAPCO 6112, 6112HPS, 6720, 6720HPS, 6814, MASTER-SPORT 13046072752N-SET-MS, 13046072962N-SET-MS, 203001730, 203002180, MAXGEAR 19-0639, 19-2998, METELLI 22-0918-0, METZGER 1170538, MEYLE 025 233 4720, 025 233 4720/PD, 025 246 8820, 025 246 8820/PD, MINTEX MDB3092, MDB3106, MOTAQUIP LVXL1168, LVXL1716, MTR 12160829, NK 221539, 221547, 221558, OPTIMAL 12601, 12712, BP-12601, BP-12712, BP-85700, ProfiPower 1B1113, QUARO QP2153, QP2153C, QP3570, QP3570C, QUINTON HAZELL BP1398, BP1753, BP1755, RAICAM RA.0789.0, RA.0789.2, REMSA 0857.00, 0857.20, 1496.00, RIDEX 402B0061, 402B0553, RIDEX PLUS 402B0061P, ROADHOUSE 21496.00, 2857.00, 2857.20, SAMKO 5SP1619, SKF VKBP 80308, VKBP 80444, STARK SKBP-0010060, SKBP-0011117, STOPTECH 308.09180, SWAG 20 91 6433, 20 91 6728, 20 91 6865, 20 91 6899, TEXTAR 2331211, 2331282, 2468801, 2468881, TOMEX brakes TX 13-25, TX 17-35, TOPRAN 502 514, TRISCAN 8110 11041, TRUCKTEC AUTOMOTIVE 08.34.174, TRUSTING 574.9, 936.0, TRW GDB1498, GDB1498DTE, GDB1854, VAICO V20-1464, V20-8121, V20-8121-1, VALEO 302273, 601320, 601357, 601382, ZEKKERT BS-1163, BS-2946, ZIMMERMANN 23312.200.1, 23312.200.9, 23312.900.1, 24688.200.1, 24697.190.1
Le tableau de compatibilité n'est donné qu'à titre indicatif et ne garantit pas que cette pièce convienne à votre voiture. Les constructeurs automobiles utilisent différentes variantes d'une même pièce pour un même modèle en fonction de nombreux facteurs tels que : l'année de production, l'usine où la voiture a été assemblée, l'équipement supplémentaire ou le pack ajouté lors de la commande de la voiture, etc. Les différentes variantes ne sont généralement pas interchangeables entre elles. Vérifiez le numéro de la pièce d'origine (OE) utilisée dans votre voiture et comparez-le avec le numéro de référence OE fourni ci-dessus ou contactez-nous pour vérifier la compatibilité.
POUR LES VÉHICULES SUIVANTS:
Modèle | Moteur / kw/CH | Années de production | Restriction
• BMW 5 Berline (E60) 525 d | M57 D25 (256D2) / 120KW/163CH | 12.2004 - 03.2010 | Année jusqu'à 12/2006
• BMW 5 Berline (E60) 525 d | M57 D25 (256D2) / 130KW/177CH | 06.2004 - 03.2010 | Année jusqu'à 12/2006
• BMW 5 Berline (E60) 530 d | M57 D30 (306D2) / 155KW/211CH | 09.2002 - 12.2009 | Année à partir de 05/2003, Année jusqu'à 09/2005
• BMW 5 Berline (F10) 523 i | N52 B25 A / 150KW/204CH | 01.2010 - 08.2011 |
• BMW 5 Berline (F10) 525 d | N57 D30 A / 150KW/204CH | 03.2010 - 08.2011 |
• BMW 5 Berline (F10) 525 d | N47 D20 D / 155KW/211CH | 09.2011 - 10.2016 | Année jusqu'à 06/2013
• BMW 5 Berline (F10) 525 d | N47 D20 D / 160KW/218CH | 09.2011 - 10.2016 |
• BMW 5 Berline (F10) 525 d xDrive | N47 D20 D / 155KW/211CH | 09.2011 - 10.2016 | Année jusqu'à 06/2013
• BMW 5 Berline (F10) 525 d xDrive | N47 D20 D / 160KW/218CH | 09.2011 - 10.2016 |
• BMW 5 Berline (F10) 528 i | N20 B20 A / 180KW/245CH | 09.2011 - 10.2016 |
• BMW 5 Berline (F10) 528 i | N53 B30 A / 190KW/258CH | 03.2010 - 08.2011 |
• BMW 5 Berline (F10) 528 i xDrive | N20 B20 A / 180KW/245CH | 09.2011 - 10.2016 |
• BMW 5 Berline (F10) 530 d | N57 D30 A / 180KW/245CH | 01.2010 - 08.2011 |
• BMW 5 Berline (F10) 530 d | N57 D30 A / 190KW/258CH | 09.2011 - 10.2016 |
• BMW 5 Berline (F10) 530 d | N57 D30 A / 210KW/286CH | 09.2010 - 10.2016 | Année à partir de 07/2014
• BMW 5 Berline (F10) 530 d xDrive | N57 D30 A / 190KW/258CH | 03.2011 - 10.2016 |
• BMW 5 Berline (F10) 530 d xDrive | N57 D30 A / 210KW/286CH | 03.2011 - 10.2016 | Année à partir de 07/2014, Année jusqu'à 09/2015
• BMW 5 Berline (F10) 530 i | N52 B30 BF / 190KW/258CH | 03.2010 - 06.2013 | Année à partir de 05/2011
• BMW 5 Berline (F10) 530 i | N53 B30 A / 200KW/272CH | 05.2011 - 06.2013 | Année à partir de 09/2011
• BMW 5 Berline (F10) 535 i | N55 B30 A / 225KW/306CH | 01.2010 - 10.2016 | Année à partir de 10/2011, Année jusqu'à 06/2013
• BMW 5 Berline (F10) 535 i | N55 B30 A / 240KW/326CH | 07.2013 - 10.2016 |
• BMW 5 Berline (F10) 535 i xDrive | N55 B30 A / 225KW/306CH | 03.2011 - 10.2016 |
• BMW 5 Berline (F10) 535 i xDrive | N55 B30 A / 240KW/326CH | 07.2013 - 10.2016 | Année à partir de 05/2014
• BMW 5 Berline (F10) ActiveHybrid | N55 B30 A / 250KW/340CH | 12.2011 - 10.2016 |
• BMW 5 GT (F07) 530 d | N57 D30 A / 180KW/245CH | 08.2009 - 06.2012 | Année à partir de 10/2009
• BMW 5 GT (F07) 535 d xDrive | N57 D30 B / 220KW/299CH | 03.2010 - 06.2012 | Année à partir de 09/2010
• BMW 5 Touring (E61) 525 i | N52 B25 A / 155KW/211CH | 03.2005 - 05.2010 |
• BMW 5 Touring (E61) 530 d | M57 D30 (306D2) / 155KW/211CH | 03.2004 - 05.2010 | Année à partir de 09/2005, Année jusqu'à 12/2006
• BMW 5 Touring (F11) 518 d | B47 D20 A / 100KW/136CH | 07.2013 - 02.2017 | Année à partir de 07/2014
• BMW 5 Touring (F11) 518 d | N47 D20 C / 105KW/143CH | 07.2013 - 06.2014 |
• BMW 5 Touring (F11) 520 d | N47 D20 C / 100KW/136CH | 06.2010 - 06.2014 |
• BMW 5 Touring (F11) 520 d | B47 D20 A / 120KW/163CH | 06.2010 - 02.2017 | Année à partir de 07/2014
• BMW 5 Touring (F11) 520 d | N47 D20 C / 135KW/184CH | 06.2010 - 06.2014 | Année à partir de 01/2013
• BMW 5 Touring (F11) 520 d | N47 D20 C / 147KW/200CH | 06.2010 - 06.2014 |
• BMW 5 Touring (F11) 520 d xDrive | N47 D20 C / 100KW/136CH | 07.2013 - 06.2014 |
• BMW 5 Touring (F11) 520 d xDrive | N47 D20 C / 135KW/184CH | 07.2013 - 06.2014 |
• BMW 5 Touring (F11) 520 d xDrive | N47 D20 C / 147KW/200CH | 07.2013 - 06.2014 |
• BMW 5 Touring (F11) 525 d | N57 D30 A / 150KW/204CH | 09.2010 - 08.2011 |
• BMW 5 Touring (F11) 525 d | N47 D20 D / 155KW/211CH | 09.2011 - 02.2017 | Année à partir de 10/2012, Année jusqu'à 07/2014
• BMW 5 Touring (F11) 525 d | N47 D20 D / 160KW/218CH | 09.2011 - 02.2017 |
• BMW 5 Touring (F11) 525 d xDrive | N47 D20 D / 155KW/211CH | 07.2013 - 02.2017 | Année jusqu'à 07/2014
• BMW 5 Touring (F11) 525 d xDrive | N47 D20 D / 160KW/218CH | 07.2013 - 02.2017 |
• BMW 5 Touring (F11) 528 i | N20 B20 A / 180KW/245CH | 09.2011 - 02.2017 |
• BMW 5 Touring (F11) 528 i | N53 B30 A / 190KW/258CH | 11.2009 - 08.2011 | Année à partir de 07/2010
• BMW 5 Touring (F11) 528 i xDrive | N20 B20 A / 180KW/245CH | 09.2011 - 02.2017 |
• BMW 5 Touring (F11) 530 d | N57 D30 A / 180KW/245CH | 06.2010 - 08.2011 | Année à partir de 07/2010
• BMW 5 Touring (F11) 530 d | N57 D30 A / 190KW/258CH | 09.2011 - 02.2017 |
• BMW 5 Touring (F11) 530 d | N57 D30 A / 210KW/286CH | 09.2011 - 02.2017 | Année à partir de 01/2013, Année jusqu'à 07/2014
• BMW 5 Touring (F11) 530 d xDrive | N57 D30 A / 190KW/258CH | 03.2011 - 02.2017 |
• BMW 5 Touring (F11) 530 d xDrive | N57 D30 A / 210KW/286CH | 03.2011 - 02.2017 | Année à partir de 09/2015
• BMW 5 Touring (F11) 530 i | N53 B30 A / 200KW/272CH | 07.2011 - 06.2013 |
• BMW 5 Touring (F11) 535 i | N55 B30 A / 225KW/306CH | 06.2010 - 02.2017 | Année à partir de 06/2013
• BMW 5 Touring (F11) 535 i | N55 B30 A / 240KW/326CH | 07.2013 - 02.2017 | Année à partir de 05/2014
• BMW 5 Touring (F11) 535 i xDrive | N55 B30 A / 225KW/306CH | 09.2011 - 02.2017 | Année à partir de 02/2013
• BMW 5 Touring (F11) 535 i xDrive | N55 B30 A / 240KW/326CH | 07.2013 - 02.2017 | Année à partir de 05/2014
• BMW 6 Décapotable (F12) 640 i | N55 B30 A / 235KW/320CH | 09.2011 - 06.2018 | Année jusqu'à 04/2015
• BMW 6 Décapotable (F12) 640 i xDrive | N55 B30 A / 235KW/320CH | 03.2013 - 06.2018 | Année à partir de 03/2015
• BMW 6 Coupe (F13) 640 i | N55 B30 A / 235KW/320CH | 07.2011 - 10.2017 | Année à partir de 03/2015
• BMW 6 Coupe (F13) 640 i xDrive | N55 B30 A / 235KW/320CH | 03.2013 - 10.2017 | Année à partir de 03/2015
• BMW 6 Gran Coupe (F06) 640 i | N55 B30 A / 235KW/320CH | 03.2012 - 10.2018 | Année jusqu'à 04/2015
• BMW 6 Gran Coupe (F06) 640 i xDrive | N55 B30 A / 235KW/320CH | 03.2013 - 10.2018 | Année jusqu'à 04/2015
• BMW 7 (G11, G12) M 760 i, Li xDrive | N74 B66 B / 448KW/610CH | 12.2016 - 02.2019 | Année jusqu'à 02/2019
