Description
Marque: ZIMMERMANN
Numéro de pièce fabricant (MPN): 20887.195.1

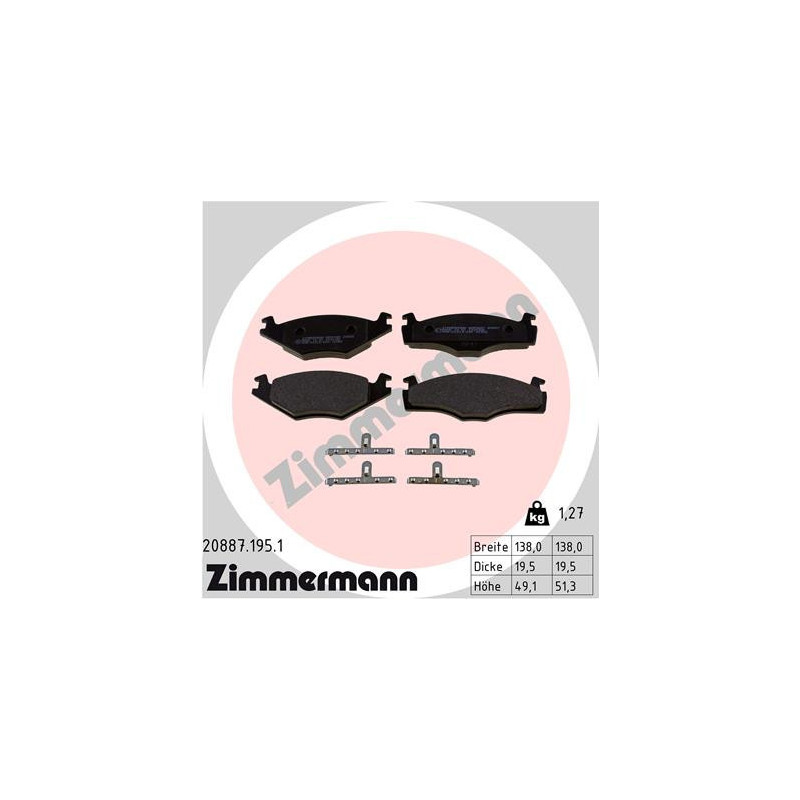

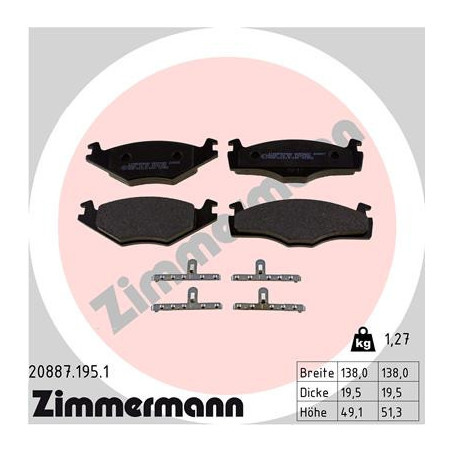

Contenu du coffret: Set d'essieu (4 plaquettes de frein)
Côté d'assemblage: Essieu avant
Hauteur 1 (mm): 49
Hauteur 2 (mm): 51
Largeur (mm): 138
Épaisseur (mm): 20
Marque de conformité: ECE R90 APPROVED
Information additionnelle: La photo correspond au contenu de la livraison, sans accessoires
Système de freinage: KELSEY HAYES
Unité quantitative: Set d'essieu
L'état: Neuf
Classification des pièces: pièce de rechange (OEM)
Garantie: 12 mois
Numéro de référence OE: VAG 110698151A, 171698151F, 171698151G, 191698151C, 191698151D, 191698151H, 191698151J, 191698151K, 1GD698151, 1H0698151, VW (SVW) 191698151H, 330698151, ZIMMERMANN 20887, 20888
Références équivalentes: A.B.S. 36536, ABAKUS/LORO/DEPO 231-01-145, ABE C1W011ABE, AISIN BPVW-1007, ASHIKA 50-00-0033, ATE 13.0460-7032.2, AUTOMEGA 120041410, 120041510, Barum BA2132, BLUE PRINT ADV184262, BOSCH 0 986 468 870, 0 986 468 871, 0 986 468 873, BRAXIS AA0065, AA0167, BRECK 20887 20 702 00, BREMBO P 85 005, P 85 012, CHAMPION 571317CH, CIFAM 822-045-1K, DELPHI LP420, LP421, LP756, DENCKERMANN B110832, B110833, B110841, DIAMAX N09063, N09632, DJ PARTS BP1247, Dr!ve+ DP1010.10.0938, FEBI BILSTEIN 16005, FERODO FDB419, FDB419G, FSL419, FOMAR Friction FO 436481, FO 436681, FTE 9010047, BL1169A3, GH GH-419969, GIRLING 6104545, HELLA 8DB 355 017-501, 8DB 355 017-521, HELLA PAGID 8DB 355 017-501, 8DB 355 017-521, ICER 180460, JAPANPARTS PA-0033AF, JAPKO 500033, JP GROUP 1163600110, 1163600119, 1163600510, 1163600610, 1163600619, 1163608810, 1163608819, JURID 571317J, 571317J-AS, KAMOKA 101838, JQ101838, KAWE 0121 10, KRAFT 6000140, LPR 05P224, 05P225, 05P227, MAGNETI MARELLI 363700204151, 363700204154, 363700485005, 363700485012, 363702160009, 363916060392, 363916060394, MAPCO 6210/1, MASTER-SPORT 13046070322-SET-MS, 13046070322K-SET-MS, 13046070322N-SET-MS, MAXGEAR 19-0582, 19-0583, METZGER 1170033, MEYLE 025 208 8715, 025 208 8719, 025 208 8719/PD, MINTEX MDB1266, MDB1267, MOTAQUIP LVXL377, MTR MT571, NK 224709, 229969, OPTIMAL 9362, BP-09362, ProfiPower 1B1077, PROFIT 5000-0419, PROTECHNIC PRP0389, QUARO QP6959, QP6959C, QUINTON HAZELL BP237, BP360, BP374, RAICAM RA.0291.0, RA.0291.1, REMSA 0121.10, 0171.05, 0171.10, 8171.01, RIDEX 402B0089, 402B0705, ROADHOUSE 2121.10, 2171.05, 2171.10, ROTINGER RT 1012, SAMKO 5SP224, 5SP225, SASIC 6216102, STARK SKBP-0010089, SKBP-0011261, SWAG 30 91 6005, TEXTAR 2088707, 2088710, TOMEX brakes TX 10-14, TX 10-53, TRISCAN 8110 10105, 8110 29237, TRUSTING 047.1K, TRW GDB454, VAICO V10-5590, V10-8101, V10-8101-1, V10-8103, V10-8109-1, V10-8347, VALEO 301128, 302656, 598128, VIKA 66980008701, ZIMMERMANN 20887.195.1, 20887.195.2
Le tableau de compatibilité n'est donné qu'à titre indicatif et ne garantit pas que cette pièce convienne à votre voiture. Les constructeurs automobiles utilisent différentes variantes d'une même pièce pour un même modèle en fonction de nombreux facteurs tels que : l'année de production, l'usine où la voiture a été assemblée, l'équipement supplémentaire ou le pack ajouté lors de la commande de la voiture, etc. Les différentes variantes ne sont généralement pas interchangeables entre elles. Vérifiez le numéro de la pièce d'origine (OE) utilisée dans votre voiture et comparez-le avec le numéro de référence OE fourni ci-dessus ou contactez-nous pour vérifier la compatibilité.
POUR LES VÉHICULES SUIVANTS:
Modèle | Moteur / kw/CH | Années de production | Restriction
• SEAT Cordoba Berline (6K1, 6K2) 1.6 i | ABU / 55KW/75CH | 02.1993 - 10.2002 | Année jusqu'à 06/1996
• SEAT Cordoba Berline (6K1, 6K2) 1.6 i | 1F / 55KW/75CH | 05.1994 - 06.1999 | Année jusqu'à 06/1996
• SEAT Cordoba Berline (6K1, 6K2) 1.8 i | ACC / 66KW/90CH | 02.1993 - 09.2002 | Année jusqu'à 06/1996
• SEAT Cordoba Berline (6K1, 6K2) 1.9 D | 1Y / 47KW/64CH | 01.1996 - 08.1996 | Année jusqu'à 06/1996
• SEAT Cordoba Berline (6K1, 6K2) 1.9 D | 1Y / 50KW/68CH | 02.1993 - 08.1996 | Année jusqu'à 06/1996
• SEAT Cordoba Berline (6K1, 6K2) 1.9 TD | AAZ / 55KW/75CH | 02.1993 - 08.1996 | Année jusqu'à 06/1996
• SEAT Ibiza II (6K1) 1.6 i | ABU / 55KW/75CH | 03.1993 - 02.2002 | Année jusqu'à 06/1996
• SEAT Ibiza II (6K1) 1.6 i | 1F / 55KW/75CH | 09.1994 - 06.1999 | Année jusqu'à 06/1996
• SEAT Ibiza II (6K1) 1.8 i | ACC / 66KW/90CH | 03.1993 - 08.1999 | Année jusqu'à 06/1996
• SEAT Ibiza II (6K1) 1.9 D | 1Y / 47KW/64CH | 04.1993 - 06.1999 | Année jusqu'à 06/1996
• SEAT Ibiza II (6K1) 1.9 TD | AAZ / 55KW/75CH | 03.1993 - 08.1996 | Année jusqu'à 06/1996
• SEAT TOLEDO I (1L) 1.6 i | 1F / 52KW/71CH | 05.1991 - 12.1993 |
• SEAT TOLEDO I (1L) 1.6 i | EZ / 54KW/73CH | 05.1991 - 03.1999 | Année jusqu'à 02/1996
• SEAT TOLEDO I (1L) 1.8 i | RP / 65KW/88CH | 05.1991 - 12.1996 | Année jusqu'à 02/1996
• SEAT TOLEDO I (1L) 1.8 i | ACC / 66KW/90CH | 11.1993 - 12.1996 | Année jusqu'à 02/1996
• SEAT TOLEDO I (1L) 1.9 D | 1Y / 47KW/64CH | 12.1995 - 03.1999 | Année jusqu'à 02/1996
• SEAT TOLEDO I (1L) 1.9 D | 1Y / 50KW/68CH | 05.1991 - 03.1999 | Année jusqu'à 02/1996
• SEAT TOLEDO I (1L) 1.9 TD | AAZ / 55KW/75CH | 05.1991 - 03.1999 | Année jusqu'à 02/1996
• VW Caddy I Pick-up (14) 1.5 | JB / 51KW/70CH | 08.1982 - 07.1983 |
• VW Caddy I Pick-up (14) 1.6 | EW / 55KW/75CH | 01.1983 - 07.1992 |
• VW Caddy I Pick-up (14) 1.6 | EM / 55KW/75CH | 10.1982 - 10.1983 |
• VW Caddy I Pick-up (14) 1.6 D | CR / 40KW/55CH | 08.1982 - 07.1992 |
• VW Caddy I Pick-up (14) 1.8 | JH / 70KW/95CH | 08.1985 - 07.1992 |
• VW Caddy II Break (9K9B) 1.7 SDI | AHB / 42KW/57CH | 07.1996 - 09.2000 |
• VW Caddy II Van (9K9A) 1.7 SDI | AHB / 42KW/57CH | 07.1996 - 09.2000 |
• VW Golf I (17) 1.6 TD | CY / 51KW/70CH | 03.1982 - 07.1983 |
• VW Golf I Cabriolet (155) 1.6 | RE / 53KW/72CH | 04.1986 - 02.1990 |
• VW Golf I Cabriolet (155) 1.6 | EW / 55KW/75CH | 08.1983 - 04.1992 |
• VW Golf II (19E, 1G1) 1.0 | HZ / 37KW/50CH | 08.1985 - 10.1991 |
• VW Golf II (19E, 1G1) 1.3 Cat | MH / 40KW/55CH | 06.1986 - 12.1992 |
• VW Golf II (19E, 1G1) 1.6 | PN / 51KW/70CH | 10.1986 - 12.1992 |
• VW Golf II (19E, 1G1) 1.6 | RF / 53KW/72CH | 02.1986 - 10.1991 |
• VW Golf II (19E, 1G1) 1.6 | HM / 55KW/75CH | 08.1983 - 07.1992 |
• VW Golf II (19E, 1G1) 1.6 TD | 1V / 44KW/60CH | 08.1989 - 10.1991 |
• VW Golf II (19E, 1G1) 1.6 TD | MF / 51KW/70CH | 08.1983 - 10.1991 |
• VW Golf II (19E, 1G1) 1.6 TD | RA / 59KW/80CH | 04.1989 - 10.1991 |
• VW Golf II (19E, 1G1) 1.8 | RH / 62KW/84CH | 08.1986 - 01.1990 |
• VW Golf II (19E, 1G1) 1.8 | GX / 66KW/90CH | 08.1984 - 10.1991 |
• VW Golf II (19E, 1G1) 1.8 i Cat | RP / 66KW/90CH | 08.1987 - 10.1991 |
• VW Golf II (19E, 1G1) 1.8 i Cat Syncro | RP / 66KW/90CH | 08.1987 - 10.1991 |
• VW Golf II (19E, 1G1) 1.8 Syncro | GX / 66KW/90CH | 02.1986 - 07.1991 |
• VW Golf II (19E, 1G1) 1.8 Syncro | 1P / 72KW/98CH | 08.1988 - 07.1991 |
• VW Golf III (1H1) 1.4 | AEX / 40KW/55CH | 11.1991 - 08.1997 | Année jusqu'à 09/1996
• VW Golf III (1H1) 1.4 | AEX / 44KW/60CH | 10.1991 - 08.1997 | Année jusqu'à 09/1996
• VW Golf III (1H1) 1.6 | ABU / 55KW/75CH | 09.1992 - 08.1997 | Année jusqu'à 09/1996
• VW Golf III (1H1) 1.8 | AAM / 55KW/75CH | 11.1991 - 08.1997 | Année jusqu'à 07/1995
• VW Golf III (1H1) 1.8 | ADZ / 66KW/90CH | 11.1991 - 08.1997 | Année jusqu'à 07/1995
• VW Golf III (1H1) 1.8 Syncro (1HX1) | ADZ / 66KW/90CH | 01.1993 - 08.1997 | Année jusqu'à 09/1996
• VW Golf III (1H1) 1.9 D | 1Y / 47KW/64CH | 11.1991 - 08.1997 | Année jusqu'à 09/1996
• VW Golf III (1H1) 1.9 TD, GTD | AAZ / 55KW/75CH | 11.1991 - 08.1997 | Année jusqu'à 09/1996
• VW Golf III Variant (1H5) 1.4 | AEX / 40KW/55CH | 07.1993 - 04.1999 | Année jusqu'à 09/1996
• VW Golf III Variant (1H5) 1.4 | AEX / 44KW/60CH | 07.1993 - 04.1999 | Année jusqu'à 09/1996
• VW Jetta II (19E, 1G2, 165) 1.3 Cat | MH / 40KW/55CH | 06.1987 - 12.1991 | Année à partir de 08/1989
• VW Jetta II (19E, 1G2, 165) 1.6 | PN / 51KW/70CH | 10.1986 - 10.1991 |
• VW Jetta II (19E, 1G2, 165) 1.6 | RF / 53KW/72CH | 03.1986 - 10.1991 |
• VW Jetta II (19E, 1G2, 165) 1.6 | HM / 55KW/75CH | 01.1984 - 07.1992 |
• VW Jetta II (19E, 1G2, 165) 1.6 TD | 1V / 44KW/60CH | 01.1990 - 10.1991 |
• VW Jetta II (19E, 1G2, 165) 1.6 TD | MF / 51KW/70CH | 01.1984 - 10.1991 |
• VW Jetta II (19E, 1G2, 165) 1.6 TD | RA / 59KW/80CH | 04.1989 - 10.1991 |
• VW Jetta II (19E, 1G2, 165) 1.8 | RH / 62KW/84CH | 08.1986 - 01.1990 |
• VW Jetta II (19E, 1G2, 165) 1.8 | GX / 66KW/90CH | 08.1984 - 10.1991 |
• VW Jetta II (19E, 1G2, 165) 1.8 | RD / 79KW/107CH | 08.1985 - 10.1987 |
• VW Jetta II (19E, 1G2, 165) 1.8 | EV / 82KW/112CH | 01.1984 - 10.1991 |
• VW Jetta II (19E, 1G2, 165) 1.8 Cat | RP / 66KW/90CH | 08.1987 - 10.1991 |
• VW Jetta II (19E, 1G2, 165) 1.8 Cat | PF / 79KW/107CH | 01.1987 - 10.1991 |
• VW Jetta II (19E, 1G2, 165) 1.8 Syncro | RP / 66KW/90CH | 08.1987 - 12.1988 |
• VW Jetta II (19E, 1G2, 165) 1.8 Syncro | 1P / 72KW/98CH | 08.1988 - 07.1991 |
• VW Jetta Mk1 (16) 1.5 | JB / 51KW/70CH | 08.1978 - 02.1984 |
• VW Jetta Mk1 (16) 1.6 | FR / 63KW/85CH | 08.1978 - 02.1984 |
• VW Jetta Mk1 (16) 1.6 TD | CY / 51KW/70CH | 03.1982 - 02.1984 |
• VW PASSAT (32B) 1.3 | FY / 40KW/55CH | 08.1980 - 07.1983 | Année à partir de 08/1982
• VW PASSAT (32B) 1.3 | FZ / 44KW/60CH | 08.1980 - 07.1986 | Année à partir de 08/1982
• VW PASSAT (32B) 1.3 | EP / 44KW/60CH | 08.1980 - 07.1986 | Année à partir de 08/1982
• VW PASSAT (32B) 1.6 | DTA / 51KW/70CH | 08.1986 - 03.1988 |
• VW PASSAT (32B) 1.6 | RL / 53KW/72CH | 02.1986 - 03.1988 |
• VW PASSAT (32B) 1.6 | WV / 55KW/75CH | 09.1979 - 03.1988 |
• VW PASSAT (32B) 1.6 | DT / 55KW/75CH | 08.1980 - 03.1988 |
• VW PASSAT (32B) 1.6 | YP / 63KW/85CH | 01.1981 - 02.1983 |
• VW PASSAT (32B) 1.6 D | CR / 40KW/54CH | 08.1980 - 03.1988 | Année à partir de 09/1981
• VW PASSAT (32B) 1.6 TD | CY / 51KW/70CH | 04.1982 - 03.1988 |
• VW PASSAT (32B) 1.6 TD | RA / 59KW/80CH | 05.1986 - 03.1988 |
• VW PASSAT (32B) 1.8 | RM / 64KW/87CH | 05.1986 - 03.1988 |
• VW PASSAT (32B) 1.8 | DS / 66KW/90CH | 01.1983 - 03.1988 |
• VW PASSAT (32B) 1.8 | DZ / 82KW/112CH | 12.1983 - 03.1988 |
• VW PASSAT B3/B4 Berline (3A2, 35I) 1.6 | RF / 53KW/72CH | 04.1988 - 07.1989 |
• VW PASSAT B3/B4 Berline (3A2, 35I) 1.6 | EZ / 55KW/75CH | 04.1988 - 07.1992 |
• VW PASSAT Berline (32B) 1.6 | DTA / 51KW/70CH | 08.1986 - 03.1988 |
• VW PASSAT Berline (32B) 1.6 | RL / 53KW/72CH | 01.1985 - 03.1988 |
• VW PASSAT Berline (32B) 1.6 | JU / 55KW/75CH | 08.1984 - 03.1988 |
• VW PASSAT Berline (32B) 1.6 TD | CY / 51KW/70CH | 01.1985 - 03.1988 |
• VW PASSAT Berline (32B) 1.8 | RM / 64KW/87CH | 05.1986 - 03.1988 |
• VW PASSAT Berline (32B) 1.8 | DS / 66KW/90CH | 01.1985 - 03.1988 |
• VW PASSAT Variant (33) 1.3 | ZF / 44KW/60CH | 10.1973 - 01.1978 |
• VW Passat Variant (33B) 1.3 | FY / 40KW/55CH | 08.1980 - 07.1983 | Année à partir de 08/1982
• VW Passat Variant (33B) 1.6 | DTA / 51KW/70CH | 08.1986 - 03.1988 |
• VW Passat Variant (33B) 1.6 | RL / 53KW/72CH | 02.1986 - 03.1988 |
• VW Passat Variant (33B) 1.6 | WV / 55KW/75CH | 08.1980 - 07.1983 |
• VW Passat Variant (33B) 1.6 | JU / 55KW/75CH | 08.1983 - 03.1988 |
• VW Passat Variant (33B) 1.6 | YP / 63KW/85CH | 01.1981 - 02.1983 |
• VW Passat Variant (33B) 1.6 D | CR / 40KW/54CH | 08.1980 - 03.1988 | Année à partir de 09/1981
• VW Passat Variant (33B) 1.6 TD | CY / 51KW/70CH | 04.1982 - 03.1988 |
• VW Passat Variant (33B) 1.8 | RM / 64KW/87CH | 05.1986 - 03.1988 |
• VW Passat Variant (33B) 1.8 | DS / 66KW/90CH | 01.1983 - 03.1988 |
• VW Passat Variant (33B) 1.8 | DZ / 82KW/112CH | 12.1983 - 03.1988 |
• VW PASSAT B3/B4 Variant (3A5, 35I) 1.6 | RF / 53KW/72CH | 04.1988 - 07.1989 |
• VW PASSAT B3/B4 Variant (3A5, 35I) 1.6 | EZ / 55KW/75CH | 04.1988 - 07.1991 |
• VW SANTANA (32B) 1.3 | FZ / 44KW/60CH | 08.1981 - 07.1983 | Année à partir de 08/1982
• VW SANTANA (32B) 1.6 | WV / 55KW/75CH | 08.1981 - 12.1984 |
• VW SANTANA (32B) 1.6 | DT / 55KW/75CH | 08.1981 - 12.1984 |
• VW SANTANA (32B) 1.6 | YP / 63KW/85CH | 08.1981 - 12.1982 |
• VW SANTANA (32B) 1.6 D | CR / 40KW/54CH | 08.1981 - 12.1984 | Année à partir de 08/1982
• VW SANTANA (32B) 1.6 TD | CY / 51KW/70CH | 12.1981 - 12.1984 | Année à partir de 08/1982
• VW SANTANA (32B) 1.8 | DS / 66KW/90CH | 01.1983 - 12.1984 |
• VW Scirocco (53) 1.3 | GF / 44KW/60CH | 08.1979 - 07.1980 |
• VW Scirocco (53) 1.5 | JB / 51KW/70CH | 08.1977 - 07.1980 | Année à partir de 08/1978
• VW Scirocco (53) 1.6 | FR / 63KW/85CH | 08.1975 - 07.1980 | Année à partir de 08/1978
• VW Scirocco (53) 1.6 | EG / 81KW/110CH | 06.1976 - 07.1980 | Année à partir de 08/1978
• VW Scirocco (53B) 1.3 | GF / 44KW/60CH | 08.1980 - 12.1983 |
• VW Scirocco (53B) 1.5 | JB / 51KW/70CH | 08.1980 - 12.1983 |
• VW Scirocco (53B) 1.6 | EWA / 51KW/70CH | 08.1983 - 07.1984 |
• VW Scirocco (53B) 1.6 | RE / 53KW/72CH | 04.1986 - 07.1990 |
• VW Scirocco (53B) 1.6 | EW / 55KW/75CH | 01.1983 - 12.1989 |
• VW Scirocco (53B) 1.6 | FR / 63KW/85CH | 08.1980 - 04.1984 |
• VW Scirocco (53B) 1.6 | EG / 81KW/110CH | 08.1980 - 07.1982 |
• VW Vento (1H2) 1.4 | AEX / 40KW/55CH | 11.1991 - 09.1998 | Année jusqu'à 09/1996
• VW Vento (1H2) 1.4 | AEX / 44KW/60CH | 11.1991 - 09.1998 | Année jusqu'à 09/1996
• VW Vento (1H2) 1.6 | ABU / 55KW/75CH | 09.1992 - 09.1998 | Année jusqu'à 09/1996
• VW Vento (1H2) 1.8 | AAM / 55KW/75CH | 11.1991 - 09.1998 | Année jusqu'à 09/1996
• VW Vento (1H2) 1.9 D | 1Y / 48KW/65CH | 11.1991 - 09.1998 | Année jusqu'à 09/1996
• VW Vento (1H2) 1.9 TD | AAZ / 55KW/75CH | 11.1991 - 09.1998 | Année jusqu'à 09/1996
