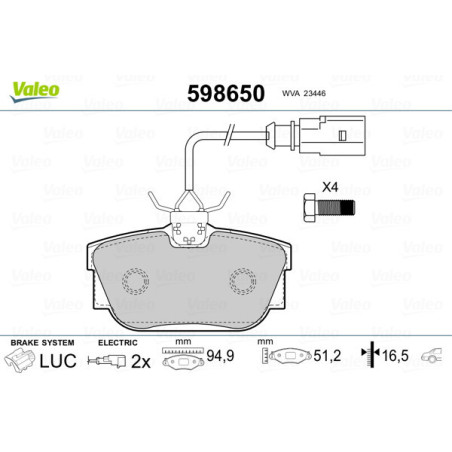

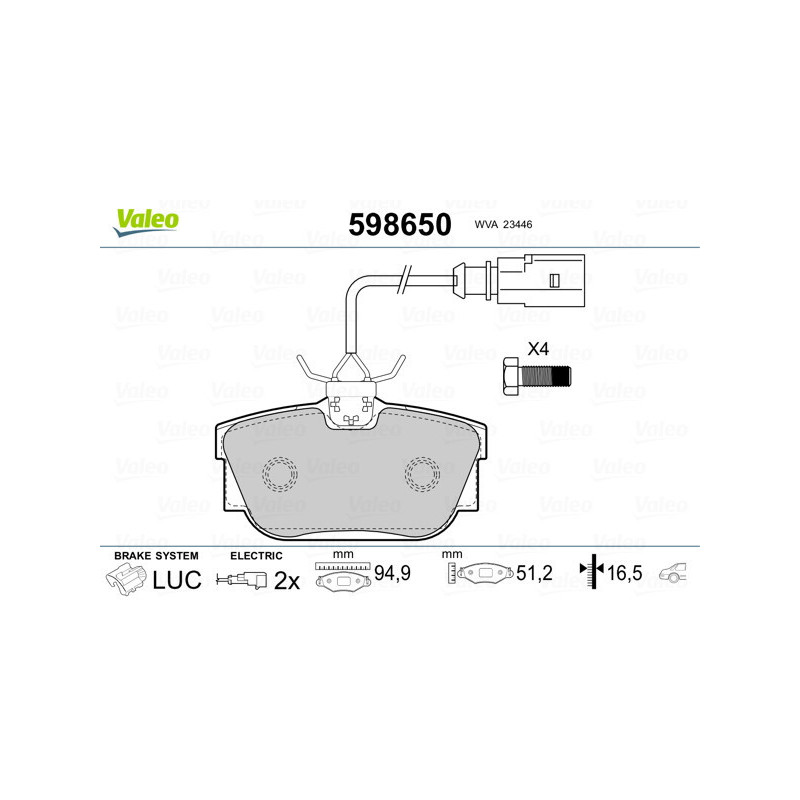

Description
Marque: VALEO
Numéro de pièce fabricant (MPN): 598650
Contenu du coffret: Set d'essieu (4 plaquettes de frein)
Côté d'assemblage: Essieu arrière
Indicateur d'usure: contact de signal d'usure inclus
Année à partir de: 05/1996
Nombre de témoins d'usure [par essieu]: 2
Hauteur (mm): 51,2
Largeur (mm): 95
Épaisseur (mm): 16,5
numéro WVA: 23446
Marque de conformité: ECE-R90
Poids (kg): 1,15
Information additionnelle: avec vis/boulons, avec tôle anti-bruit
Longeur de contacts d'avertissment (mm): 205
Information additionnelle: avec coulisses
Type de fonctionnement: électrique
Système de freinage: LUCAS
Unité quantitative: Set d'essieu
L'état: Neuf
Classification des pièces: pièce de rechange (OEM)
Garantie: 12 mois
Numéro de référence OE: FORD 1386603, SEAT 7D0698451F, 7M3698451D, 7M3698451F, VALEO 23446, VW 7D0698451B, 7D0698451F, 7M3698451D, 7M3698451F
Références équivalentes: A.B.S. 37110, 37142, 39426, ABAKUS/LORO/DEPO 231-02-053, ABE C2W013ABE, ASHIKA 51-00-0301, 51-00-0912, ATE 13.0460-2872.2, AUTOMEGA 120045610, Barum BA2200, BLUE PRINT ADV184240, ADV184254, BOSCH 0 986 424 542, 0 986 494 025, 0 986 494 529, 0 986 494 619, BRAXIS AB0168, AB0184, BRECK 23224 00 702 10, 23446 00 702 10, BREMBO P 85 059, BSG BSG 90-200-017, BSG 90-202-006, CHAMPION 573049CH, 573065CH, CIFAM 822-346-2, DAVID VASCO Q1326, Q1415, Z1326, Z1415, DELPHI LP1511, LP1541, LP1556, LP1733, DENCKERMANN B110852, B110901, DJ PARTS BP2009, BP2494, Dr!ve+ DP1010.10.0831, DP1010.10.0833, DP1010.10.1051, DP1010.10.1122, FEBI BILSTEIN 16394, 16408, FERODO FDB1481, FDB1482, FSL1481, FSL1482, FOMAR Friction FO 691181, FO 904581, FTE 9010736, 9010737, BL1773A4, BL1773B4, BL2436A1, BL2436B1, GH GH-414753, GH-414755, GIRLING 6114151, HELLA 8DB 355 018-571, HELLA PAGID 8DB 355 018-571, ICER 181393-700, JAPANPARTS PP-0301AF, JAPKO 510301, 510912, JP GROUP 1163706010, 1163706019, 1163706110, 1163707410, 1163707510, 1163707519, JPN 20H9081-JPN, JURID 573038J, 573049J, 573065J, 573065JC, KAMOKA JQ1011083, JQ1012964, KAWE 810052, KRAFT 6010903, 6010906, 6010960, LPR 05P1699, 05P980, MAGNETI MARELLI 363700205135, 363700485059, 363710205135, 363916060258, 363916060259, 363916060420, 363916060541, 363916061155, 363916061157, MAPCO 6790, MASTER-SPORT 13046028722-SET-MS, 13046028722N-SET-MS, MAXGEAR 19-1824, METELLI 22-0346-2, METZGER 1170184, MEYLE 025 232 2416/N, 025 232 2417/W, 025 234 4616/PD, 025 234 4616/W, MINTEX MDB2096, MTR 12160798, MT532, MT561, NK 224753, 224755, OPTIMAL 10338, 10486, BP-10338, BP-10486, ProfiPower 1B2029, 1B2068, PROFIT 5000-1482, QUARO QP6081, QP6081C, QUINTON HAZELL BP1050, BP1280, BP1285, BP1286, RAICAM RA.0793.1, REMSA 0263.51, 0767.01, 0767.12, RIDEX 3405B0038, 3405B0322, 402B0067, 402B0201, ROADHOUSE 2263.51, 2767.01, 2767.12, SAMKO 5SP1699, 5SP980, SKF VKBP 90452 E, VKBP 90527 E, STARK SKBK-1090037, SKBK-1090292, SKBP-0010066, SKBP-0010201, SWAG 30 91 6408, 50 91 6394, TEXTAR 2344605, TOMEX brakes TX 10-782, TX 13-901, TRISCAN 8110 29029, 8110 29035, TRUCKTEC AUTOMOTIVE 07.35.142, TRW GDB1326, GDB1415, VAICO V10-8123, V10-8148, V10-8150, V10-8150-1, VALEO 301650, 301681, 598650, VEMA VE50965, ZEKKERT BS-1376, BS-2895, ZIMMERMANN 23446.165.1, 23446.165.2
Le tableau de compatibilité n'est donné qu'à titre indicatif et ne garantit pas que cette pièce convienne à votre voiture. Les constructeurs automobiles utilisent différentes variantes d'une même pièce pour un même modèle en fonction de nombreux facteurs tels que : l'année de production, l'usine où la voiture a été assemblée, l'équipement supplémentaire ou le pack ajouté lors de la commande de la voiture, etc. Les différentes variantes ne sont généralement pas interchangeables entre elles. Vérifiez le numéro de la pièce d'origine (OE) utilisée dans votre voiture et comparez-le avec le numéro de référence OE fourni ci-dessus ou contactez-nous pour vérifier la compatibilité.
POUR LES VÉHICULES SUIVANTS:
Modèle | Moteur / kw/CH | Années de production | Restriction
• FORD GALAXY (WGR) 1.9 TDI | ASZ / 96KW/130CH | 02.2003 - 05.2006 | Année jusqu'à 04/2006
• FORD GALAXY (WGR) 1.9 TDI | BTB / 110KW/150CH | 05.2005 - 05.2006 | Année jusqu'à 04/2006
• FORD GALAXY (WGR) 2.8 V6 | AYL / 150KW/204CH | 04.2000 - 05.2006 | Année jusqu'à 04/2006
• SEAT Alhambra (7V8, 7V9) 1.8 T 20V | AJH / 110KW/150CH | 10.1997 - 03.2010 | Année à partir de 05/2001
• SEAT Alhambra (7V8, 7V9) 1.9 TDI | 1Z / 66KW/90CH | 04.1996 - 03.2010 | Année jusqu'à 06/1996
• SEAT Alhambra (7V8, 7V9) 1.9 TDI | AUY / 85KW/115CH | 06.2000 - 03.2010 | Année jusqu'à 05/2003
• SEAT Alhambra (7V8, 7V9) 1.9 TDI | ASZ / 96KW/131CH | 11.2002 - 11.2008 | Année jusqu'à 05/2003
• SEAT Alhambra (7V8, 7V9) 1.9 TDI | BTB / 110KW/150CH | 05.2005 - 05.2007 | Année à partir de 06/2005
• SEAT Alhambra (7V8, 7V9) 1.9 TDI 4motion | AUY / 85KW/115CH | 06.2000 - 03.2010 | Année à partir de 06/2003
• SEAT Alhambra (7V8, 7V9) 2.0 i | ADY / 85KW/115CH | 04.1996 - 03.2010 | Année à partir de 06/2003
• SEAT Alhambra (7V8, 7V9) 2.0 TDI | BRT / 103KW/140CH | 11.2005 - 03.2010 |
• SEAT Alhambra (7V8, 7V9) 2.8 V6 | AUE / 150KW/204CH | 06.2000 - 03.2010 |
• SEAT Alhambra (7V8, 7V9) 2.8 V6 4motion | AUE / 150KW/204CH | 06.2000 - 03.2010 |
• VW California Westfalia T4 Minibus (7DJ, 7DK, 70J) 2.5 TDI | AXG / 111KW/151CH | 07.1999 - 04.2003 | Année à partir de 09/2000
• VW California Westfalia T4 Minibus (7DJ, 7DK, 70J) 2.8 VR6 | AMV / 150KW/204CH | 05.2000 - 04.2001 |
• VW SHARAN (7M8, 7M9, 7M6) 1.8 T 20V | AWC / 110KW/150CH | 09.1997 - 03.2010 |
• VW SHARAN (7M8, 7M9, 7M6) 1.9 TDI | 1Z / 66KW/90CH | 09.1995 - 03.2010 | Année jusqu'à 05/2003
• VW SHARAN (7M8, 7M9, 7M6) 1.9 TDI | AUY / 85KW/115CH | 04.2000 - 03.2010 | Année jusqu'à 05/2003
• VW SHARAN (7M8, 7M9, 7M6) 1.9 TDI | ASZ / 96KW/130CH | 11.2002 - 03.2010 | Année jusqu'à 05/2003
• VW SHARAN (7M8, 7M9, 7M6) 1.9 TDI | BTB / 110KW/150CH | 06.2005 - 03.2010 | Année jusqu'à 05/2007
• VW SHARAN (7M8, 7M9, 7M6) 1.9 TDI 4motion | AUY / 85KW/115CH | 03.2000 - 03.2010 |
• VW SHARAN (7M8, 7M9, 7M6) 2.0 | ATM / 85KW/115CH | 09.1995 - 03.2010 | Année jusqu'à 05/2003
• VW SHARAN (7M8, 7M9, 7M6) 2.0 LPG | ATM / 85KW/115CH | 04.2006 - 03.2010 | Année à partir de 01/2008
• VW SHARAN (7M8, 7M9, 7M6) 2.0 TDI | BVH / 100KW/136CH | 11.2005 - 03.2010 | Année jusqu'à 05/2006
• VW SHARAN (7M8, 7M9, 7M6) 2.0 TDI | BRT / 103KW/140CH | 11.2005 - 03.2010 | Année jusqu'à 05/2006
• VW SHARAN (7M8, 7M9, 7M6) 2.8 V6 24V | AYL / 150KW/204CH | 04.2000 - 03.2010 |
• VW SHARAN (7M8, 7M9, 7M6) 2.8 V6 24V 4motion | AYL / 150KW/204CH | 04.2000 - 03.2010 |
• VW Transporter IV Camion à Plateau / Châssis (70E, 70L, 70M, 7DE, 7DL) 1.9 D | 1X / 45KW/61CH | 07.1990 - 12.1995 | Année à partir de 09/1990, Année jusqu'à 07/1994
• VW Transporter IV Camion à Plateau / Châssis (70E, 70L, 70M, 7DE, 7DL) 1.9 TD | ABL / 50KW/68CH | 10.1992 - 04.2003 | Année à partir de 01/1999
• VW Transporter IV Camion à Plateau / Châssis (70E, 70L, 70M, 7DE, 7DL) 2.0 | AAC / 62KW/84CH | 07.1990 - 04.2003 | Année à partir de 01/1999
• VW Transporter IV Camion à Plateau / Châssis (70E, 70L, 70M, 7DE, 7DL) 2.4 D | AJA / 55KW/75CH | 08.1997 - 04.2003 | Année à partir de 01/1999
• VW Transporter IV Camion à Plateau / Châssis (70E, 70L, 70M, 7DE, 7DL) 2.4 D | AAB / 57KW/78CH | 09.1990 - 04.1998 | Année à partir de 01/1996, Année jusqu'à 06/1997
• VW Transporter IV Camion à Plateau / Châssis (70E, 70L, 70M, 7DE, 7DL) 2.4 D Syncro | AAB / 57KW/78CH | 10.1992 - 09.1998 | Année à partir de 05/1996
• VW Transporter IV Camion à Plateau / Châssis (70E, 70L, 70M, 7DE, 7DL) 2.5 | AEU / 81KW/110CH | 11.1990 - 04.2003 | Année à partir de 01/1996
• VW Transporter IV Camion à Plateau / Châssis (70E, 70L, 70M, 7DE, 7DL) 2.5 | AET / 85KW/115CH | 08.1996 - 04.2003 | Année à partir de 05/1997
• VW Transporter IV Camion à Plateau / Châssis (70E, 70L, 70M, 7DE, 7DL) 2.5 Syncro | AEU / 81KW/110CH | 11.1992 - 11.2001 | Année à partir de 05/1996
• VW Transporter IV Camion à Plateau / Châssis (70E, 70L, 70M, 7DE, 7DL) 2.5 Syncro | AET / 85KW/115CH | 08.1996 - 04.2003 |
• VW Transporter IV Camion à Plateau / Châssis (70E, 70L, 70M, 7DE, 7DL) 2.5 TDI | AJT / 65KW/88CH | 05.1998 - 04.2003 | Année à partir de 01/1999
• VW Transporter IV Camion à Plateau / Châssis (70E, 70L, 70M, 7DE, 7DL) 2.5 TDI | AYC / 75KW/102CH | 09.1995 - 04.2003 | Année à partir de 01/1996
• VW Transporter IV Camion à Plateau / Châssis (70E, 70L, 70M, 7DE, 7DL) 2.5 TDI Syncro | ACV / 75KW/102CH | 05.1998 - 04.2003 |
• VW Transporter IV Camion à Plateau / Châssis (70E, 70L, 70M, 7DE, 7DL) 2.8 | AES / 103KW/140CH | 05.1996 - 05.2000 |
• VW Transporter IV Camion à Plateau / Châssis (70E, 70L, 70M, 7DE, 7DL) 2.8 VR6 | AMV / 150KW/204CH | 06.2000 - 04.2003 |
• VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 1.8 | PD / 49KW/67CH | 12.1990 - 07.1992 | Année à partir de 01/1992
• VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 1.9 D | 1X / 44KW/60CH | 09.1990 - 12.1995 |
• VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 1.9 TD | ABL / 50KW/68CH | 10.1992 - 04.2003 | Année à partir de 01/1999
• VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.0 | AAC / 62KW/84CH | 09.1990 - 04.2003 | Année à partir de 01/1999
• VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D | AJA / 55KW/75CH | 08.1997 - 04.2003 | Année à partir de 01/1999
• VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D | AAB / 57KW/78CH | 09.1990 - 04.1998 | Année à partir de 01/1996
• VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D Syncro | AAB / 57KW/78CH | 10.1992 - 09.1998 | Année à partir de 05/1996, Année jusqu'à 05/1997
• VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 | AEU / 81KW/110CH | 09.1990 - 06.2003 | Année à partir de 01/1996
• VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 | AET / 85KW/115CH | 08.1996 - 04.2003 |
• VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 Syncro | AEU / 81KW/110CH | 08.1992 - 04.2003 | Année à partir de 05/1996
• VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 Syncro | AET / 85KW/115CH | 07.1996 - 04.2003 | Année à partir de 08/1996
• VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI | AJT / 65KW/88CH | 05.1998 - 04.2003 | Année à partir de 01/1999
• VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI | AYC / 75KW/102CH | 09.1995 - 04.2003 | Année à partir de 01/1996
• VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI | AXG / 111KW/151CH | 05.1998 - 04.2003 |
• VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI Syncro | ACV / 75KW/102CH | 01.1996 - 04.2003 | Année à partir de 06/1997
• VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.8 VR 6 | AES / 103KW/140CH | 11.1995 - 04.2000 | Année à partir de 01/1996
• VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.8 VR6 | AXK / 150KW/204CH | 04.2000 - 04.2003 | Année à partir de 05/2000
• VW Transporter IV Van (70A, 70H, 7DA, 7DH) 1.9 D | 1X / 44KW/60CH | 09.1990 - 12.1995 |
• VW Transporter IV Van (70A, 70H, 7DA, 7DH) 1.9 D | 1X / 45KW/61CH | 07.1990 - 12.1995 | Année à partir de 09/1990
• VW Transporter IV Van (70A, 70H, 7DA, 7DH) 1.9 TD | ABL / 50KW/68CH | 10.1992 - 04.2003 | Année à partir de 01/1999
• VW Transporter IV Van (70A, 70H, 7DA, 7DH) 2.0 | AAC / 62KW/84CH | 07.1990 - 04.2003 | Année à partir de 01/1999
• VW Transporter IV Van (70A, 70H, 7DA, 7DH) 2.4 D | AJA / 55KW/75CH | 08.1997 - 04.2003 | Année à partir de 01/1999
• VW Transporter IV Van (70A, 70H, 7DA, 7DH) 2.4 D | AAB / 57KW/78CH | 07.1990 - 04.1998 | Année à partir de 01/1996, Année jusqu'à 06/1997
• VW Transporter IV Van (70A, 70H, 7DA, 7DH) 2.4 D Syncro | AAB / 57KW/78CH | 10.1992 - 09.1998 | Année à partir de 05/1996
• VW Transporter IV Van (70A, 70H, 7DA, 7DH) 2.5 | AEU / 81KW/110CH | 11.1990 - 04.2003 | Année à partir de 01/1996
• VW Transporter IV Van (70A, 70H, 7DA, 7DH) 2.5 | AET / 85KW/115CH | 08.1996 - 04.2003 | Année à partir de 05/1997
• VW Transporter IV Van (70A, 70H, 7DA, 7DH) 2.5 Syncro | AEU / 81KW/110CH | 11.1992 - 11.2001 | Année à partir de 05/1996
• VW Transporter IV Van (70A, 70H, 7DA, 7DH) 2.5 Syncro | AET / 85KW/115CH | 08.1996 - 04.2003 |
• VW Transporter IV Van (70A, 70H, 7DA, 7DH) 2.5 TDI | AJT / 65KW/88CH | 12.1998 - 04.2003 | Année à partir de 01/1999
• VW Transporter IV Van (70A, 70H, 7DA, 7DH) 2.5 TDI | AYC / 75KW/102CH | 09.1995 - 04.2003 | Année à partir de 01/1996
• VW Transporter IV Van (70A, 70H, 7DA, 7DH) 2.5 TDI | AXG / 111KW/151CH | 09.2000 - 04.2003 |
• VW Transporter IV Van (70A, 70H, 7DA, 7DH) 2.5 TDI Syncro | ACV / 75KW/102CH | 09.1995 - 04.2003 | Année à partir de 05/1998
• VW Transporter IV Van (70A, 70H, 7DA, 7DH) 2.8 VR6 | AES / 103KW/140CH | 05.1996 - 05.2000 |
• VW Transporter IV Van (70A, 70H, 7DA, 7DH) 2.8 VR6 | AXK / 150KW/204CH | 06.2000 - 04.2003 |
